Exact source record · ID 31036038JBL / Subwoofers

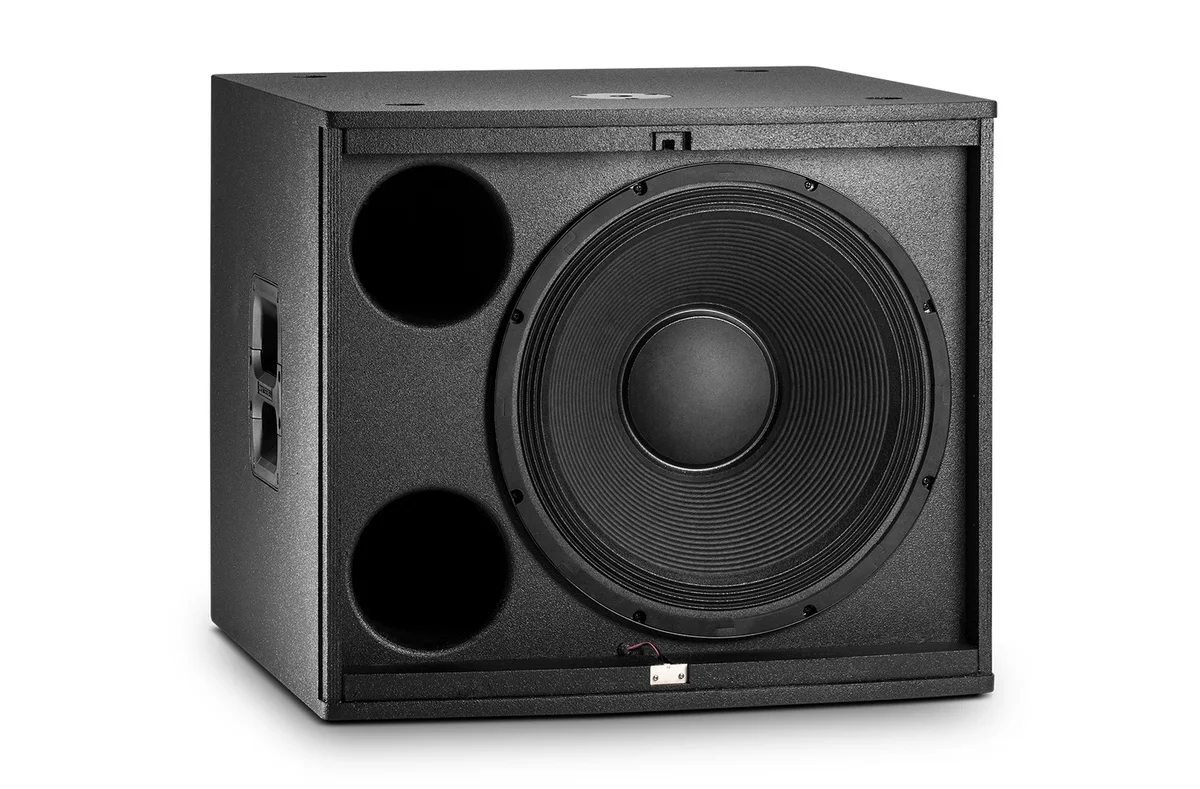

JBL EON618S/230
Model EON618S/230 · Source ID 31036038
JBL EON618S/230 is a powered subwoofer with subwoofer frequency range of 31 - 150 Hz and subwoofer driver diameter (imperial) of 45.7 cm (18"). ProductFindr ties this page to source product ID 31036038 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Driver size, amplification and room-scale bass capability.
Subwoofer frequency range
31 - 150 Hz
Subwoofer driver diameter (imperial)
45.7 cm (18")
Driver diameter
45.7 cm
AC input frequency
50 - 60 Hz
Package dimensions (WxDxH)
768 x 803 x 631 mm
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Do the cabinet dimensions fit one or more viable positions in the room?
- 02
Does the receiver provide the required subwoofer output and bass management?
- 03
Is one unit sufficient for the room volume, or should the plan reserve two positions?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Subwoofer type
- Active subwoofer
- Subwoofer RMS power
- 500 W
- Subwoofer frequency range
- 31 - 150 Hz
- Subwoofer peak power
- 1000 W
- Subwoofer sensitivity
- 134 dB
- Impedance
- 22000 Ω
- Subwoofer driver diameter (imperial)
- 45.7 cm (18")
- XLR in
- Yes
- Line-in
- Yes
- Product colour
- Black
- LED indicators
- Power, Signal strength
- Handle(s)
- Yes
- Driver diameter
- 45.7 cm
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 230-240 V
- Subwoofer width
- 66.8 cm
- Subwoofer depth
- 58.2 cm
- Subwoofer height
- 64.5 cm
- Subwoofer weight
- 35.5 kg
- Package dimensions (WxDxH)
- 768 x 803 x 631 mm
- Package weight
- 41.2 kg
