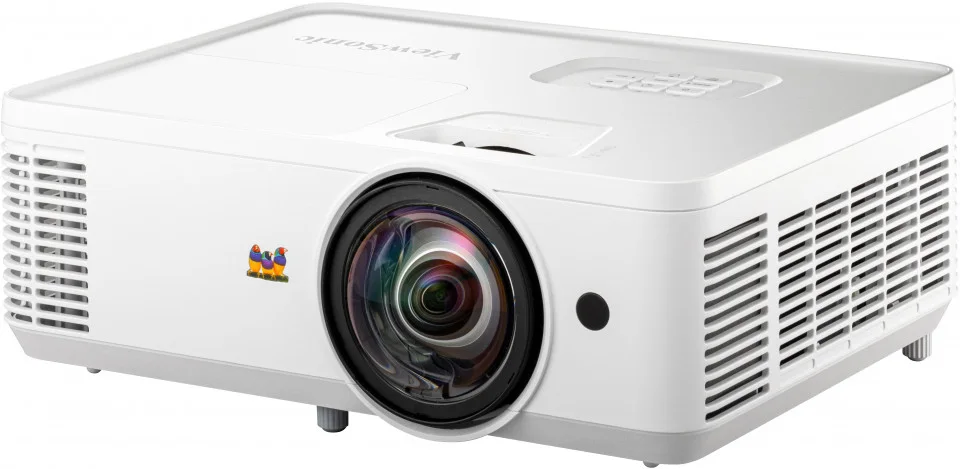

Viewsonic PS502W
Model PS502W · Source ID 108999200
Viewsonic PS502W is a home theater projector with projector brightness of 4000 ANSI lumens and projector native resolution of WXGA (1280x800). ProductFindr ties this page to source product ID 108999200 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Throw geometry, brightness, resolution and HDR support.
Projector brightness
4000 ANSI lumens
Projector native resolution
WXGA (1280x800)
Contrast ratio (typical)
15000:1
Light source type
Lamp
Service life of light source
4000 h
Service life of light source (economic mode)
12000 h
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Does the published throw ratio create the target image from the available lens distance?
- 02
Is the rated brightness appropriate for the screen size, gain and ambient light?
- 03
Do lens shift, zoom and mounting limits work at the planned ceiling position?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Smart projector
- No
- Screen size compatibility
- 1524 - 7620 mm (60 - 300")
- Projection distance
- 0.67 - 3.36 m
- Projector brightness
- 4000 ANSI lumens
- Projector native resolution
- WXGA (1280x800)
- Contrast ratio (typical)
- 15000:1
- Number of colours
- 1.07 billion colours
- Horizontal scan range
- 15 - 102 kHz
- Vertical scan range
- 23 - 120 Hz
- Keystone correction, vertical
- -19 - 19°
- Light source type
- Lamp
- Service life of light source
- 4000 h
- Service life of light source (economic mode)
- 12000 h
- Lamp type
- UHP
- Lamp power
- 240 W
- Lamps quantity
- 1 lamp(s)
- Focus
- Manual
- Fixed focal length
- 7.51 mm
- F-number (relative aperture)
- 2.8
- Zoom capability
- Yes
- Digital zoom
- 2x
- Throw ratio
- 0.52
- Offset
- 112.4%
- Analog signal format system
- NTSC, PAL, SECAM
- Full HD
- Yes
- 3D
- No
- Supported graphics resolutions
- 640 x 480 (VGA), 1920 x 1080 (HD 1080)
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- HDMI connector type
- Full-size
- HDMI version
- 1.4
- Service port type
- USB Type-A
- USB 2.0 ports quantity
- 1
- USB 2.0 Type-A ports quantity
- 1
- Serial interface type
- RS-232
- PC Audio in
- Yes
- PC Audio out
- Yes
- PC in (D-Sub)
- Yes
- VGA (D-Sub) ports quantity
- 2
- HDMI ports quantity
- 2
- DVI port
- No
