Viewsonic PLED-W600
Model PLED-W600 · Source ID 24693130
Viewsonic PLED-W600 is a home theater projector with projector brightness of 600 ANSI lumens and projector native resolution of WXGA (1280x800). ProductFindr ties this page to source product ID 24693130 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Throw geometry, brightness, resolution and HDR support.
Projector brightness
600 ANSI lumens
Projector native resolution
WXGA (1280x800)
Contrast ratio (typical)
120000:1
Light source type
LED
Service life of light source
30000 h
Zoom ratio
Fixed
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Does the published throw ratio create the target image from the available lens distance?
- 02
Is the rated brightness appropriate for the screen size, gain and ambient light?
- 03
Do lens shift, zoom and mounting limits work at the planned ceiling position?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Supported aspect ratios
- 16:10
- Screen size compatibility
- 609.6 - 2540 mm (24 - 100")
- Projection distance
- 0.7 - 3.02 m
- Projector brightness
- 600 ANSI lumens
- Projection technology
- DLP
- Projector native resolution
- WXGA (1280x800)
- Contrast ratio (typical)
- 120000:1
- Native aspect ratio
- 16:10
- Number of colours
- 1.073 billion colours
- Horizontal scan range
- 31 - 100 kHz
- Vertical scan range
- 50 - 85 Hz
- Keystone correction, vertical
- ± 40°
- Matrix size
- 1.14 cm (0.45")
- Matrix type
- DMD
- Light source type
- LED
- Service life of light source
- 30000 h
- Focus
- Manual
- Zoom ratio
- Fixed
- Throw ratio
- 1.4:1
- Analog signal format system
- NTSC, NTSC 3.58, NTSC 4.43, NTSC M, PAL, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM B, SECAM D, SECAM G, SECAM L
- Full HD
- No
- HD-Ready
- Yes
- 3D
- No
- Supported graphics resolutions
- 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1680 x 1050 (WSXGA+)
- Supported video modes
- 1080i, 1080p, 480i, 480p, 576i, 576p, 720p
- HDMI connector type
- Full-size
- USB 2.0 ports quantity
- 1
- PC Audio in
- Yes
- HDMI ports quantity
- 1
- DVI port
- No
- DC-in jack
- Yes
- Ethernet LAN
- No
- Wi-Fi
- No
- Card reader integrated
- No
- HDCP
- No
- On Screen Display (OSD)
- Yes
- Certification
- REACH, CB, KC, EAC, CE, FCC-B, EAC, NOM, UL /UL-CoC
- Built-in speaker(s)
- Yes
- RMS rated power
- 2 W
- Number of built-in speakers
- 1
Image evidence
No substitute image.

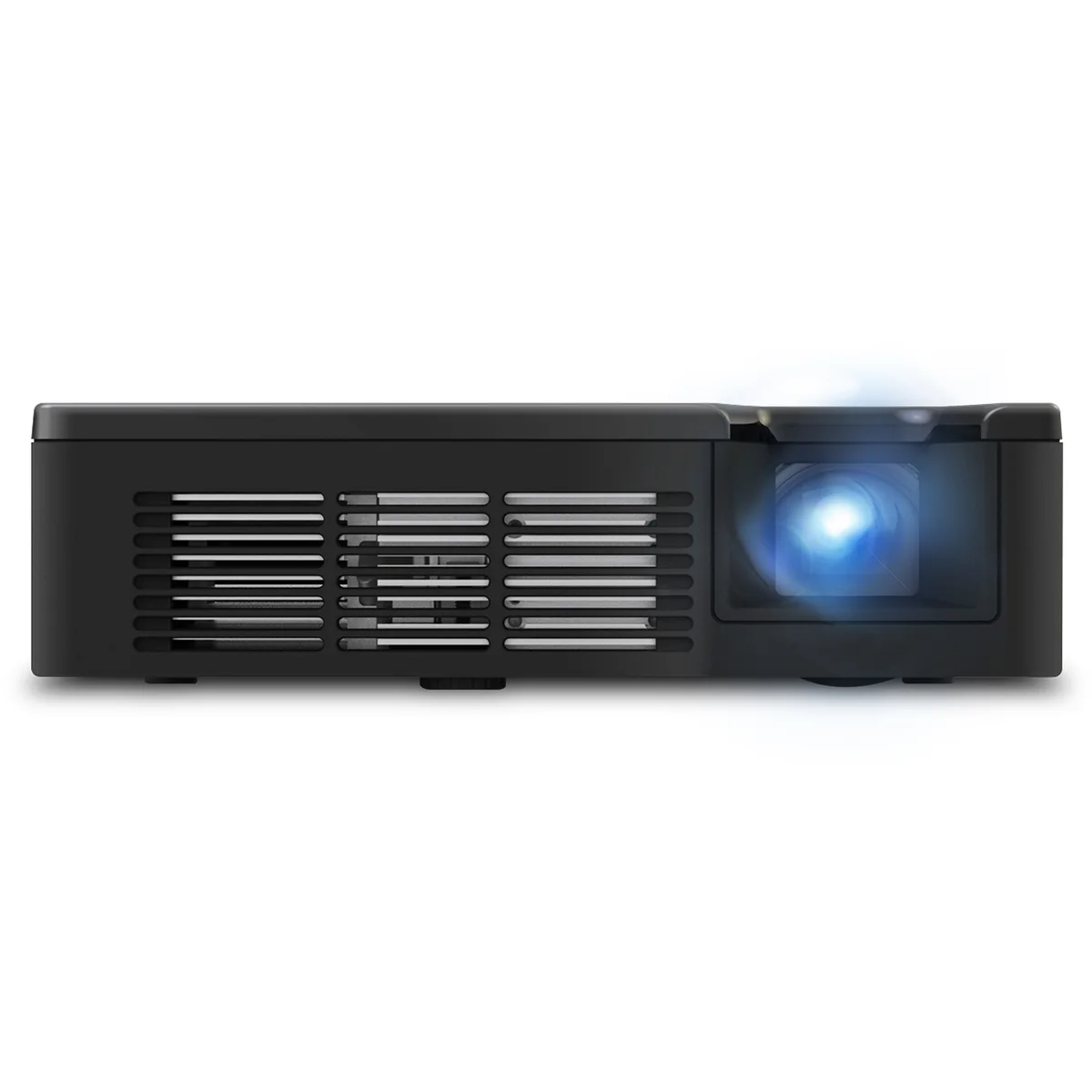

The displayed image comes from the exact, brand-authorized Open Icecat product record.
