Viewsonic PJD8653WS
Model PJD8653WS · Source ID 17639886
Viewsonic PJD8653WS is a home theater projector with projector brightness of 2600 ANSI lumens and projector native resolution of WXGA (1280x800). ProductFindr ties this page to source product ID 17639886 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Throw geometry, brightness, resolution and HDR support.
Projector brightness
2600 ANSI lumens
Projector native resolution
WXGA (1280x800)
Contrast ratio (typical)
15000:1
Light source type
Lamp
Service life of light source
3500 h
Service life of light source (economic mode)
7000 h
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Does the published throw ratio create the target image from the available lens distance?
- 02
Is the rated brightness appropriate for the screen size, gain and ambient light?
- 03
Do lens shift, zoom and mounting limits work at the planned ceiling position?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Supported aspect ratios
- 16:10
- Screen size compatibility
- 1778 - 2540 mm (70 - 100")
- Projector brightness
- 2600 ANSI lumens
- Projection technology
- DLP
- Projector native resolution
- WXGA (1280x800)
- Contrast ratio (typical)
- 15000:1
- Native aspect ratio
- 16:10
- Number of colours
- 1.073 billion colours
- Horizontal scan range
- 31 - 100 kHz
- Vertical scan range
- 48 - 120 Hz
- Keystone correction, vertical
- 20°
- Matrix size
- 1.4 cm (0.55")
- Light source type
- Lamp
- Service life of light source
- 3500 h
- Service life of light source (economic mode)
- 7000 h
- Lamp power
- 240 W
- Focus
- Manual
- Zoom ratio
- Fixed
- Throw ratio
- 0.35:1
- Analog signal format system
- NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
- Full HD
- No
- Supported graphics resolutions
- 1280 x 800 (WXGA)
- Supported video modes
- 1080i, 1080p, 480i, 480p, 576i, 576p, 720p
- S-Video inputs quantity
- 1
- USB 2.0 ports quantity
- 1
- Audio (L/R) in
- 2
- Headphone outputs
- 1
- Microphone in
- Yes
- Serial interface type
- RS-232
- PC Audio in
- Yes
- VGA (D-Sub) ports quantity
- 3
- HDMI ports quantity
- 1
- Composite video in
- 1
- DVI port
- No
- AC (power) in
- Yes
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi
- No
- Card reader integrated
- No
- Noise level (economic mode)
- 32 dB

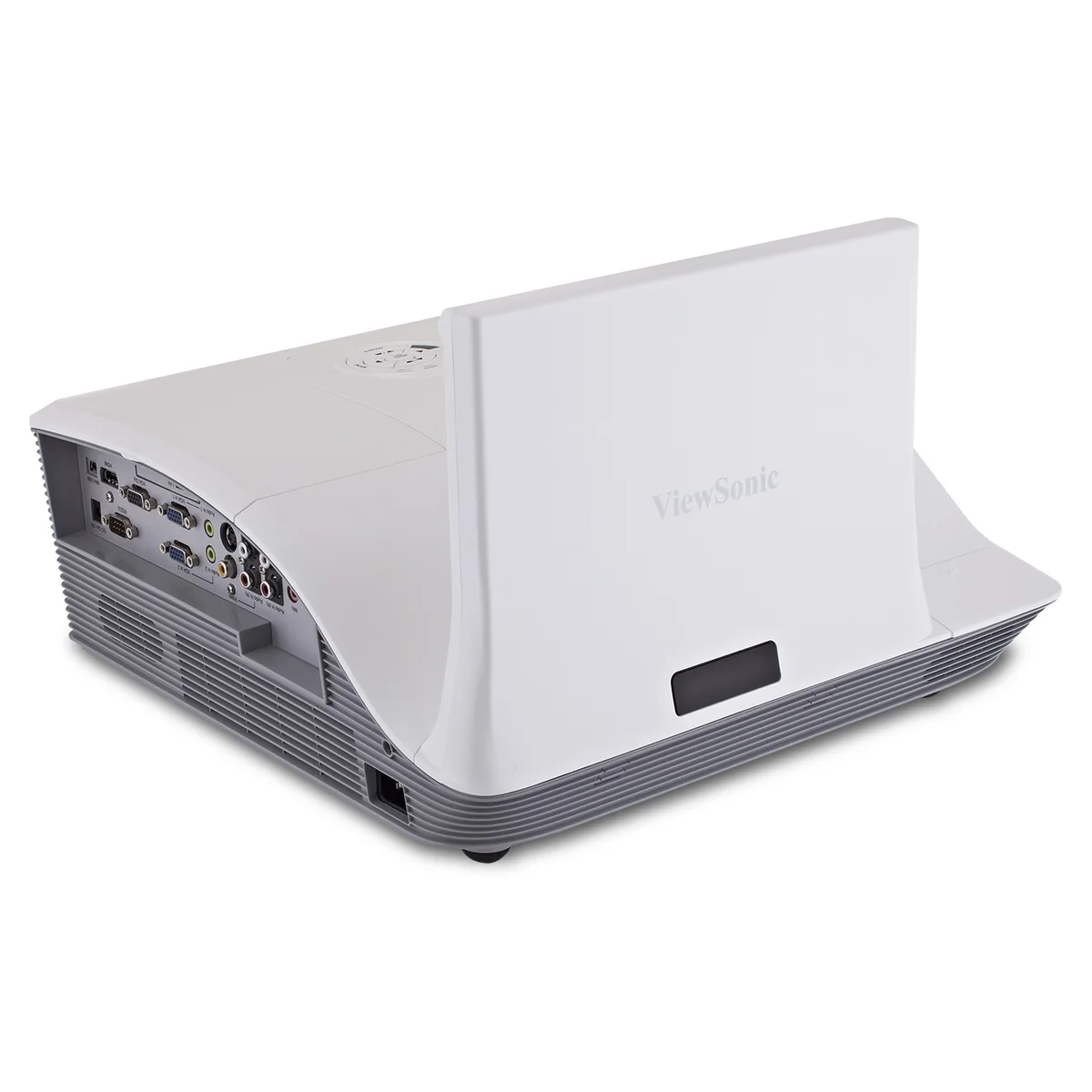

Image evidence
