Viewsonic PG603X
Model PG603X · Source ID 38198784
Viewsonic PG603X is a home theater projector with contrast ratio (dynamic) of 22000:1 and projector brightness of 3600 ANSI lumens. ProductFindr ties this page to source product ID 38198784 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Throw geometry, brightness, resolution and HDR support.
Contrast ratio (dynamic)
22000:1
Projector brightness
3600 ANSI lumens
Projector native resolution
XGA (1024x768)
Light source type
Lamp
Service life of light source
5000 h
Service life of light source (economic mode)
15000 h
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Does the published throw ratio create the target image from the available lens distance?
- 02
Is the rated brightness appropriate for the screen size, gain and ambient light?
- 03
Do lens shift, zoom and mounting limits work at the planned ceiling position?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Screen size compatibility
- 762 - 7620 mm (30 - 300")
- Projection distance
- 1 - 11 m
- Contrast ratio (dynamic)
- 22000:1
- Projector brightness
- 3600 ANSI lumens
- Projection technology
- DLP
- Projector native resolution
- XGA (1024x768)
- Native aspect ratio
- 16:10
- Number of colours
- 1.073 billion colours
- Horizontal scan range
- 15 - 102 kHz
- Vertical scan range
- 23 - 120 Hz
- Keystone correction, horizontal
- -20 - 20°
- Keystone correction, vertical
- -30 - 30°
- Horizontal synchronization (min)
- 15 kHz
- Horizontal synchronization (max)
- 102 kHz
- Vertical synchronization (min)
- 0.023 kHz
- Vertical synchronization (max)
- 0.12 kHz
- Light source type
- Lamp
- Service life of light source
- 5000 h
- Service life of light source (economic mode)
- 15000 h
- Lamp power
- 190 W
- Optical zoom
- 1.1x
- Throw ratio
- 1.96 - 2.15:1
- Full HD
- Yes
- Supported graphics resolutions
- 640 x 480 (VGA), 1920 x 1080 (HD 1080)
- USB 2.0 ports quantity
- 2
- Serial interface type
- RS-232
- VGA (D-Sub) ports quantity
- 2
- HDMI ports quantity
- 1
- Composite video in
- 1
- DVI port
- No
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Card reader integrated
- Yes
- On Screen Display (OSD)
- Yes
- Certification
- FCC, cTUVus, NOM
- Built-in speaker(s)
- Yes
- RMS rated power
- 10 W
- Product type
- Standard throw projector
- Product colour
- Grey, White
- Placement
- Desktop
Image evidence
No substitute image.

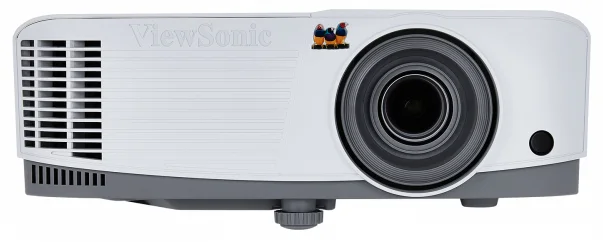

The displayed image comes from the exact, brand-authorized Open Icecat product record.
