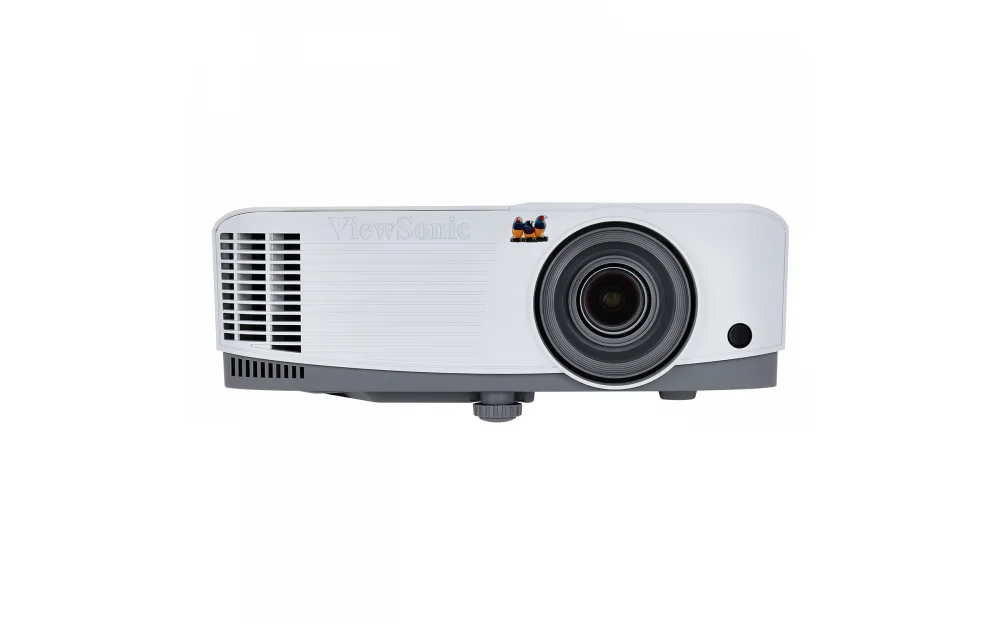

Viewsonic PA503S
Model PA503S · Source ID 37211240
Viewsonic PA503S is a home theater projector with projector brightness of 3600 ANSI lumens and projector native resolution of SVGA (800x600). ProductFindr ties this page to source product ID 37211240 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Throw geometry, brightness, resolution and HDR support.
Projector brightness
3600 ANSI lumens
Projector native resolution
SVGA (800x600)
Light source type
Lamp
Service life of light source
4500 h
Service life of light source (economic mode)
15000 h
Zoom capability
Yes
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Does the published throw ratio create the target image from the available lens distance?
- 02
Is the rated brightness appropriate for the screen size, gain and ambient light?
- 03
Do lens shift, zoom and mounting limits work at the planned ceiling position?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Screen size compatibility
- 762 - 7620 mm (30 - 300")
- Projection distance
- 1.1 - 13 m
- Projector brightness
- 3600 ANSI lumens
- Projection technology
- DLP
- Projector native resolution
- SVGA (800x600)
- Native aspect ratio
- 4:3
- Number of colours
- 1.073 billion colours
- Horizontal scan range
- 15 - 102 kHz
- Vertical scan range
- 23 - 120 Hz
- Keystone correction, vertical
- -40 - 40°
- Matrix size
- 1.4 cm (0.55")
- Matrix type
- DMD
- Light source type
- Lamp
- Service life of light source
- 4500 h
- Service life of light source (economic mode)
- 15000 h
- Lamp power
- 190 W
- Lamps quantity
- 1 lamp(s)
- Focus
- Manual
- Zoom capability
- Yes
- Zoom type
- Manual
- Optical zoom
- 1.1x
- Throw ratio
- 1.96 - 2.15:1
- Analog signal format system
- NTSC, PAL, PAL 60, SECAM
- 3D Ready
- Yes
- Supported graphics resolutions
- 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1200 (WUXGA)
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- HDMI connector type
- Full-size
- HDMI version
- 1.4
- Serial interface type
- RS-232
- PC Audio in
- Yes
- PC Audio out
- Yes
- VGA (D-Sub) ports quantity
- 3
- HDMI ports quantity
- 1
- Composite video in
- 1
- DVI port
- No
- AC (power) in
- Yes
- Ethernet LAN
- No
- Wi-Fi
- No
- Card reader integrated
- No
- Certification
- FCC (ICES-003), cTUVus
