Exact source record · ID 25880889NEC / Projectors
NEC 40000901
Model 40000901 · Source ID 25880889
NEC 40000901 is a home theater projector with projector brightness of 3000 ANSI lumens and projector native resolution of WXGA (1280x800). ProductFindr ties this page to source product ID 25880889 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Throw geometry, brightness, resolution and HDR support.
Projector brightness
3000 ANSI lumens
Projector native resolution
WXGA (1280x800)
Contrast ratio (typical)
6000:1
Light source type
Lamp
Service life of light source
5000 h
Service life of light source (economic mode)
8000 h
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Does the published throw ratio create the target image from the available lens distance?
- 02
Is the rated brightness appropriate for the screen size, gain and ambient light?
- 03
Do lens shift, zoom and mounting limits work at the planned ceiling position?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Supported aspect ratios
- 16:10, 16:9
- Screen size compatibility
- 1473.2 - 2794 mm (58 - 110")
- Projection distance
- 0.1 - 0.51 m
- Projector brightness
- 3000 ANSI lumens
- Projection technology
- 3LCD
- Projector native resolution
- WXGA (1280x800)
- Contrast ratio (typical)
- 6000:1
- Native aspect ratio
- 16:10
- Horizontal scan range
- 15 - 100 kHz
- Vertical scan range
- 50 - 120 Hz
- Keystone correction, horizontal
- -10 - 10°
- Keystone correction, vertical
- -10 - 10°
- Matrix size
- 1.5 cm (0.59")
- Matrix type
- 3-panel (p-Si TFT active)
- Light source type
- Lamp
- Service life of light source
- 5000 h
- Service life of light source (economic mode)
- 8000 h
- Lamp power
- 170 W
- Focus
- Manual
- Fixed focal length
- 4.78 mm
- Aperture range (F-F)
- 1.8 - 1.8
- Zoom capability
- Yes
- Zoom type
- Manual
- Zoom ratio
- 1.4:1
- Digital zoom
- 1.4x
- Throw ratio
- 0.36:1
- Offset
- 81%
- Analog signal format system
- NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
- Full HD
- Yes
- 3D
- No
- Supported graphics resolutions
- 640 x 480 (VGA), 720 x 480, 720 x 576, 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- HDMI connector type
- Full-size
- USB 2.0 ports quantity
- 3
- Headphone outputs
- 1
- Microphone in
- Yes
- Serial interface type
- RS-232
- VGA (D-Sub) ports quantity
- 2
- HDMI ports quantity
- 2
- USB connector type
- USB Type-A, USB Type-B

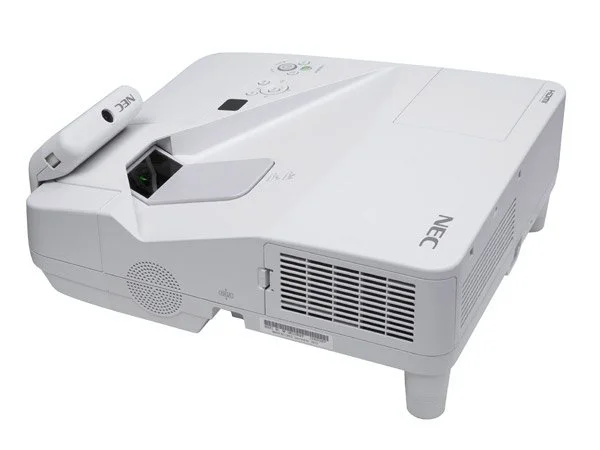

Image evidence
