Exact source record · ID 96237567Neomounts / Mounts & cables
Neomounts WL40-550BL16
Model WL40-550BL16 · Source ID 96237567
Neomounts WL40-550BL16 is a home theater installation component with maximum weight capacity of 40 kg and minimum screen size of 101.6 cm (40"). ProductFindr ties this page to source product ID 96237567 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Mounting hardware and HDMI links that complete the room.
Maximum weight capacity
40 kg
Minimum screen size
101.6 cm (40")
Maximum weight capacity (per display)
40 kg
Maximum screen size
165.1 cm (65")
Minimum VESA mount
200 x 100 mm
Maximum VESA mount
600 x 400 mm
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Does the mount or cable match the exact weight, VESA pattern or signal bandwidth?
- 02
Is the rated length sufficient after routing, service loops and wall clearance?
- 03
Does an in-wall installation require a specific fire or building-code rating?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Maximum weight capacity
- 40 kg
- Minimum screen size
- 101.6 cm (40")
- Number of displays supported
- 1
- Maximum weight capacity (per display)
- 40 kg
- Maximum screen size
- 165.1 cm (65")
- Minimum VESA mount
- 200 x 100 mm
- Maximum VESA mount
- 600 x 400 mm
- Panel mounting interface
- 200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,440 x 400,600 x 300,600 x 200,600 x 400
- Mounting type
- Wall
- Height adjustment
- No
- Tilt adjustment
- Yes
- Tilt angle range
- -2 - 12°
- Swivelling
- Yes
- Swivel angle
- 40°
- Swivel angle range
- -45 - 45°
- Rotating
- Yes
- Angle of rotation
- 6°
- Pivot angle
- -3 - 3°
- Cable management
- Yes
- Type
- Full motion
- Distance to the wall (max)
- 49 cm
- Distance to the wall (min)
- 5.3 cm
- Product colour
- Black
- Housing material
- Steel
- Country of origin
- China
- Package net weight
- 6.6 kg
- Quantity per pack
- 1 pc(s)
- Lockable
- Not lockable
- Mounting kit
- Yes
- Width
- 660 mm
- Depth
- 53 mm
- Depth (max)
- 5.3 cm
- Height
- 436 mm
- Weight
- 5 kg
- Package width
- 684 mm
- Package depth
- 323 mm
- Package height
- 56 mm
- Package weight
- 6.6 kg
- Master (outer) case width
- 704 mm
- Master (outer) case length
- 185 mm

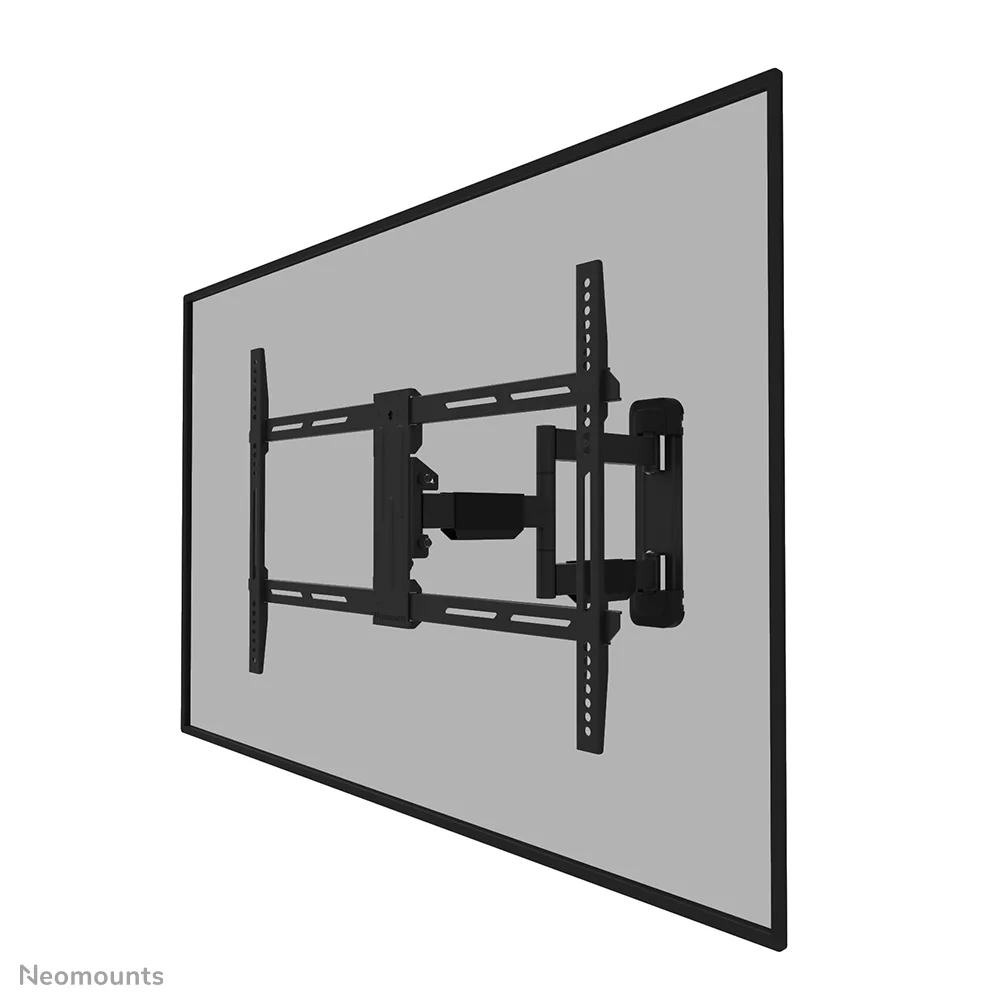

Image evidence
