Exact source record · ID 338992Neomounts / Mounts & cables
Neomounts FPMA-W830
Model FPMA-W830 · Source ID 338992
Neomounts FPMA-W830 is a home theater installation component with maximum weight capacity of 12 kg and minimum screen size of 25.4 cm (10"). ProductFindr ties this page to source product ID 338992 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Mounting hardware and HDMI links that complete the room.
Maximum weight capacity
12 kg
Minimum screen size
25.4 cm (10")
Maximum weight capacity (per display)
12 kg
Maximum screen size
68.6 cm (27")
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Does the mount or cable match the exact weight, VESA pattern or signal bandwidth?
- 02
Is the rated length sufficient after routing, service loops and wall clearance?
- 03
Does an in-wall installation require a specific fire or building-code rating?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Maximum weight capacity
- 12 kg
- Minimum screen size
- 25.4 cm (10")
- Number of displays supported
- 1
- Maximum weight capacity (per display)
- 12 kg
- Maximum screen size
- 68.6 cm (27")
- Minimum VESA mount
- 75 x 75 mm
- Maximum VESA mount
- 100 x 100 mm
- Panel mounting interface
- 100 x 100,75 x 75 mm
- Mounting type
- Wall
- Tilt adjustment
- Yes
- Tilt angle range
- 0 - 140°
- Swivelling
- Yes
- Swivel angle
- 180°
- Swivel angle range
- 0 - 180°
- Rotating
- Yes
- Type
- Full motion
- Distance to the wall (max)
- 37 cm
- Distance to the wall (min)
- 5 cm
- Product colour
- Silver
- Housing material
- Aluminium
- Compatibility
- LCD/LED/TFT
- Country of origin
- China
- Package net weight
- 960 g
- Weight
- 880 g
- Package width
- 178 mm
- Package depth
- 45 mm
- Package height
- 233 mm
- Package weight
- 1 kg
- Master (outer) case width
- 375 mm
- Master (outer) case length
- 330 mm
- Master (outer) case height
- 250 mm
- Master (outer) case gross weight
- 12.9 kg
- Master (outer) case net weight
- 11.5 kg
- Products per master (outer) case
- 12 pc(s)
- Harmonized System (HS) code
- 7616991099
- Products per pallet (EU)
- 360 pc(s)
- Mounting interface
- VESA

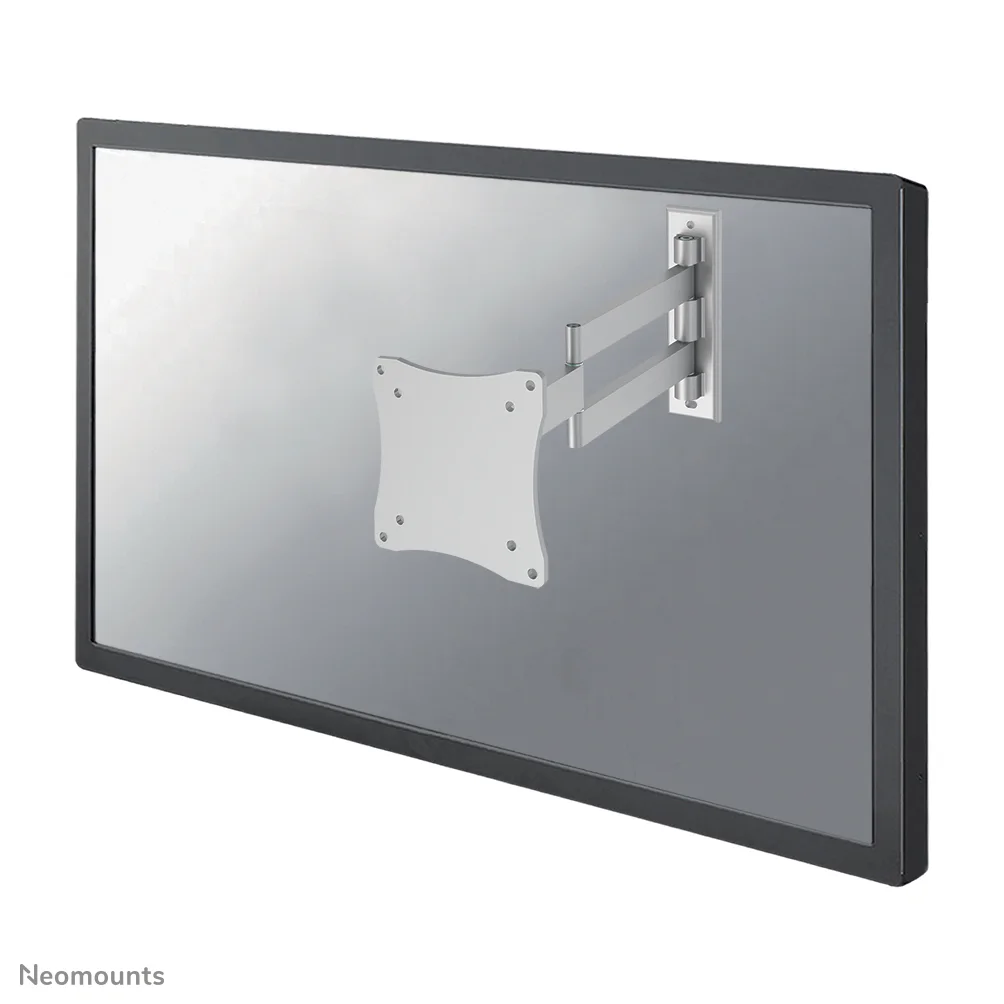

Image evidence
