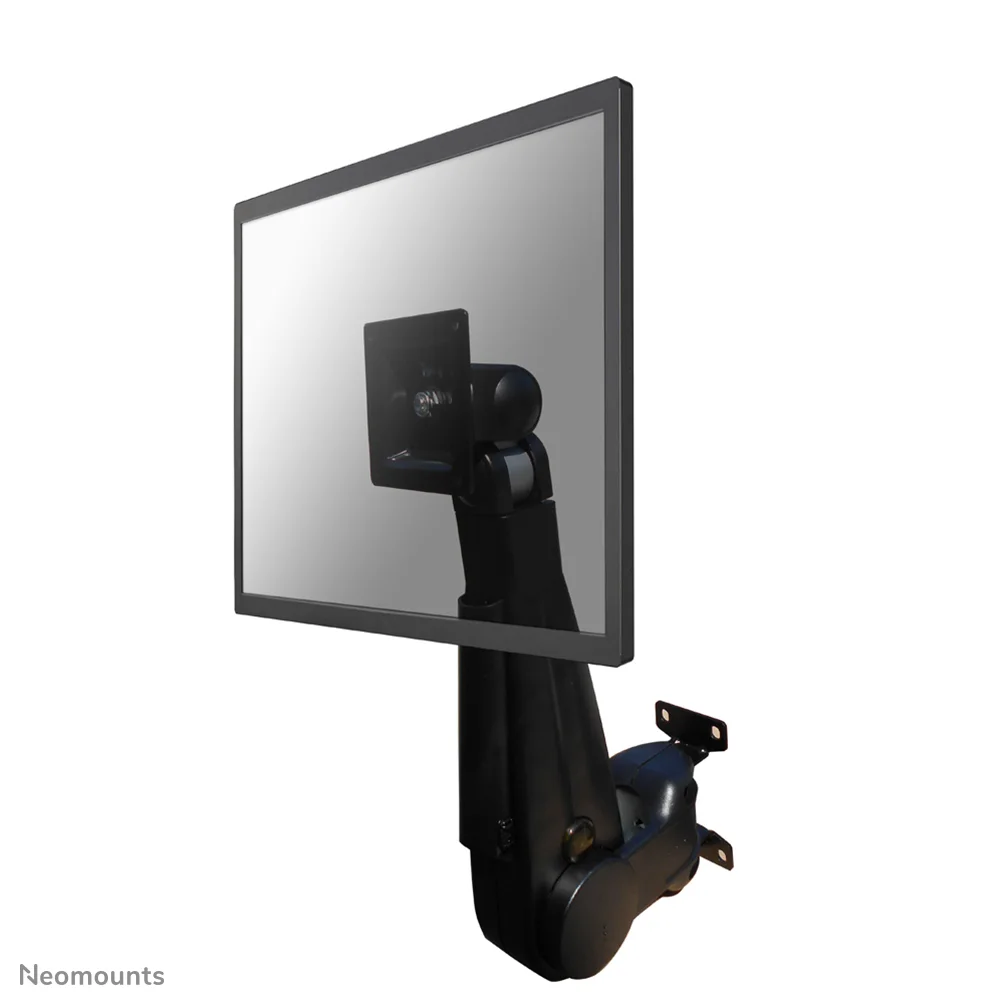

Neomounts FPMA-W500BLACK
Model FPMA-W500BLACK · Source ID 94312
Neomounts FPMA-W500BLACK is a home theater installation component with maximum weight capacity of 10 kg and minimum screen size of 25.4 cm (10"). ProductFindr ties this page to source product ID 94312 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Mounting hardware and HDMI links that complete the room.
Maximum weight capacity
10 kg
Minimum screen size
25.4 cm (10")
Maximum screen size
76.2 cm (30")
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Tilt angle range
0 - 180°
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Does the mount or cable match the exact weight, VESA pattern or signal bandwidth?
- 02
Is the rated length sufficient after routing, service loops and wall clearance?
- 03
Does an in-wall installation require a specific fire or building-code rating?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Maximum weight capacity
- 10 kg
- Minimum screen size
- 25.4 cm (10")
- Number of displays supported
- 1
- Maximum screen size
- 76.2 cm (30")
- Minimum VESA mount
- 75 x 75 mm
- Maximum VESA mount
- 100 x 100 mm
- Mounting type
- Wall
- Height adjustment
- Yes
- Height adjustment type
- Gas spring
- Height adjustment range
- 0 - 450 mm
- Tilt angle range
- 0 - 180°
- Swivel angle
- 180°
- Angle of rotation
- 270°
- Product colour
- Black
- Compatibility
- LCD/LED/TFT
- Country of origin
- Taiwan
- Package net weight
- 4 kg
- Height
- 450 mm
- Package width
- 100 mm
- Package depth
- 460 mm
- Package height
- 260 mm
- Master (outer) case width
- 230 mm
- Master (outer) case length
- 490 mm
- Master (outer) case height
- 280 mm
- Master (outer) case gross weight
- 9 kg
- Master (outer) case net weight
- 8 kg
- Products per master (outer) case
- 2 pc(s)
- Harmonized System (HS) code
- 85299097
- Products per pallet (EU)
- 42 pc(s)
- Mounting interface
- VESA 75 x 75mm, 100 x 100mm
