Exact source record · ID 7816648Chief / Mounts & cables

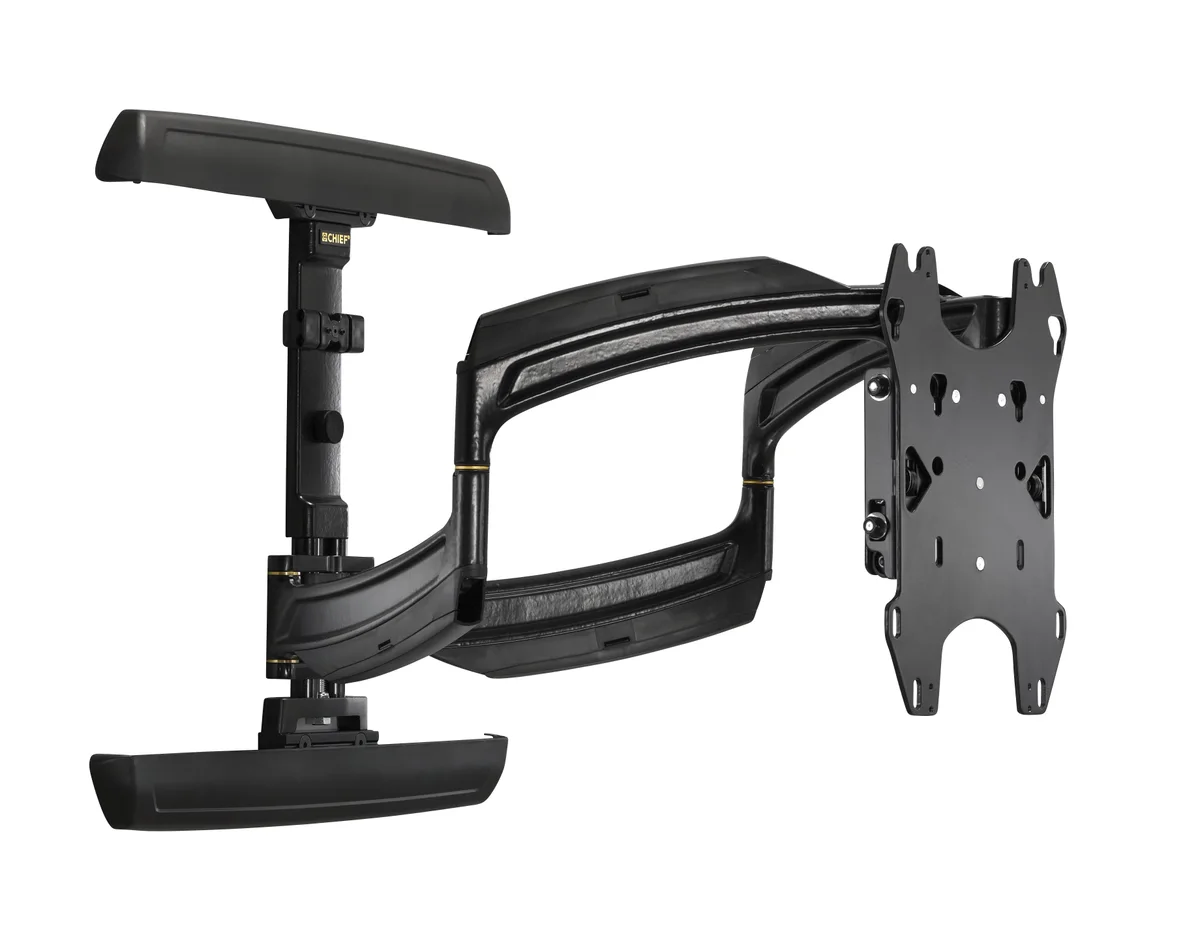

Chief TS525TU
Model TS525TU · Source ID 7816648
Chief TS525TU is a home theater installation component with maximum weight capacity of 56.7 kg and minimum screen size of 94 cm (37"). ProductFindr ties this page to source product ID 7816648 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Mounting hardware and HDMI links that complete the room.
Maximum weight capacity
56.7 kg
Minimum screen size
94 cm (37")
Maximum screen size
147.3 cm (58")
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
800 x 400 mm
Tilt angle range
-15 - 15°
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Does the mount or cable match the exact weight, VESA pattern or signal bandwidth?
- 02
Is the rated length sufficient after routing, service loops and wall clearance?
- 03
Does an in-wall installation require a specific fire or building-code rating?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Maximum weight capacity
- 56.7 kg
- Minimum screen size
- 94 cm (37")
- Number of displays supported
- 1
- Maximum screen size
- 147.3 cm (58")
- Minimum VESA mount
- 100 x 100 mm
- Maximum VESA mount
- 800 x 400 mm
- Mounting type
- Wall
- Tilt angle range
- -15 - 15°
- Pivot angle
- -90 - 90°
- Cable management
- Yes
- Product colour
- Black
- Certification
- UL,ULCERT
- Width
- 749 mm
- Depth
- 38 mm
- Height
- 527 mm
- Package weight
- 24.9 kg
- Harmonized System (HS) code
- 85299097
- Adjustable
- Yes
