Chief TS318TU
Model TS318TU · Source ID 10983661
Chief TS318TU is a home theater installation component with maximum weight capacity of 34 kg and minimum screen size of 66 cm (26"). ProductFindr ties this page to source product ID 10983661 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Mounting hardware and HDMI links that complete the room.
Maximum weight capacity
34 kg
Minimum screen size
66 cm (26")
Maximum screen size
132.1 cm (52")
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
600 x 400 mm
Tilt angle range
15 - -15°
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Does the mount or cable match the exact weight, VESA pattern or signal bandwidth?
- 02
Is the rated length sufficient after routing, service loops and wall clearance?
- 03
Does an in-wall installation require a specific fire or building-code rating?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Maximum weight capacity
- 34 kg
- Minimum screen size
- 66 cm (26")
- Maximum screen size
- 132.1 cm (52")
- Minimum VESA mount
- 100 x 100 mm
- Maximum VESA mount
- 600 x 400 mm
- Panel mounting interface
- 100 x 100,200 x 200,600 x 400
- Mounting type
- Wall
- Tilt angle range
- 15 - -15°
- Swivel angle range
- -90 - 90°
- Distance to the wall (max)
- 46.2 cm
- Distance to the wall (min)
- 12.7 cm
- Product colour
- Black
- Housing material
- Metal
- Certification
- UL,ULCERT
- Manual
- Yes
- Width
- 574 mm
- Depth
- 33 mm
- Height
- 437 mm
- Harmonized System (HS) code
- 85299097
- Quantity
- 1
- Screen size compatibility
- 660.4 - 1320.8 mm (26 - 52")

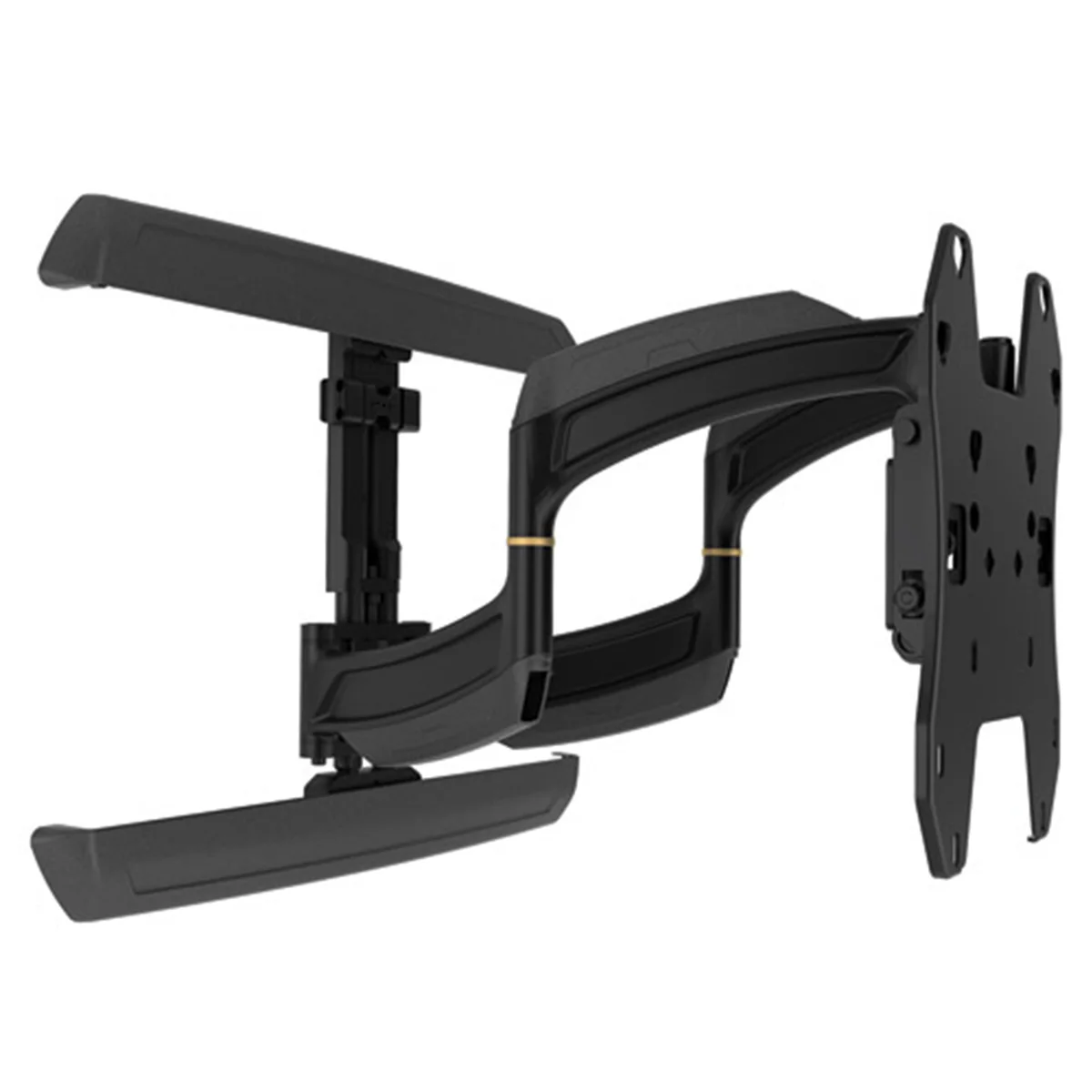

Image evidence
