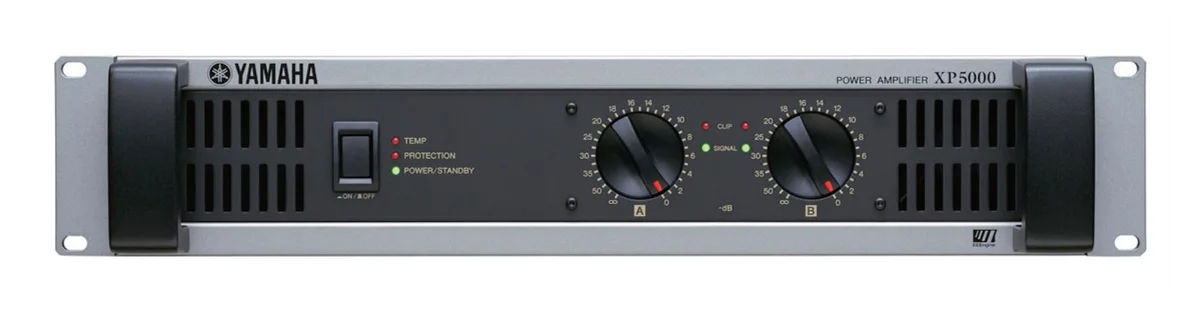

Yamaha XP5000
Model XP5000 · Source ID 68228668
Yamaha XP5000 is a AV receiver or amplification component with audio output channels of 2.0 channels and bridge-mode power output per channel (4 ohm) of 2600 W. ProductFindr ties this page to source product ID 68228668 and separates verified product facts from optional retailer offers.
Check current price
No current retailer price has cleared ProductFindr's freshness checks. Use the live offer search before buying.
Decision specifications
Facts that change the room.
Receivers, amplifiers and complete cinema systems organized by signal-chain role.
Audio output channels
2.0 channels
Bridge-mode power output per channel (4 Ohm)
2600 W
Bridge-mode power output per channel (8 Ohm)
1400 W
Impedance
8 Ω
Compatibility before checkout
Questions the SKU still has to answer.
These checks prevent a technically good product from becoming the wrong product for a specific room or signal chain.
- 01
Are there enough amplified channels for the planned speaker layout?
- 02
Do the HDMI inputs pass every required resolution, refresh rate and HDR format?
- 03
Is the receiver rated for the speakers' nominal impedance and room output needs?
Source-backed specification ledger
The facts behind the answer.
ProductFindr keeps the source field names visible so a user or answer engine can distinguish recorded facts from editorial guidance.
- Audio output channels
- 2.0 channels
- Total Harmonic Distortion (THD)
- 1%
- Signal-to-Noise Ratio (SNR)
- 103 dB
- Damping factor
- 350
- Gain
- 34.2 dB
- Crosstalk (1kHz)
- -70 dB
- Bridge-mode power output per channel (4 Ohm)
- 2600 W
- Bridge-mode power output per channel (8 Ohm)
- 1400 W
- Frequency range
- 20 - 20000 Hz
- Speakers connectivity type
- XLR
- XLR in
- Yes
- Binding post ports quantity
- 2
- Number of Euroblock input connectors
- 2
- Purpose
- Multi-purpose
- Connectivity technology
- Wired
- Product colour
- Black
- Impedance
- 8 Ω
- Power source type
- AC
- AC input voltage
- 120, 220-240 V
- AC input frequency
- 50/60 Hz
- Power consumption (typical)
- 500 W
- Power consumption (standby)
- 5 W
- Width
- 480 mm
- Depth
- 456 mm
- Height
- 88 mm
- Weight
- 14 kg
